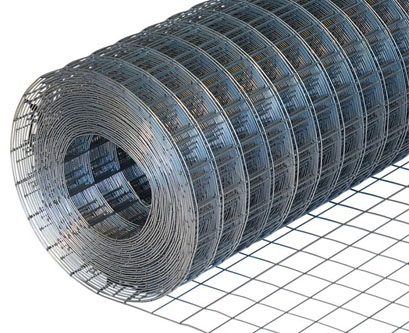

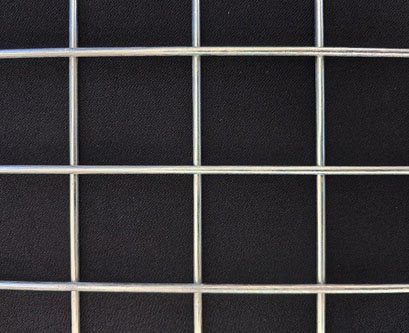

Galvanized Welded Wire Mesh

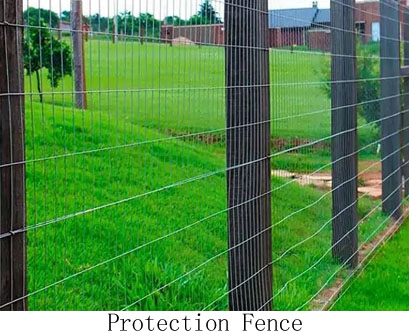

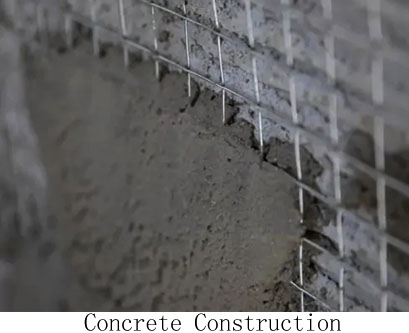

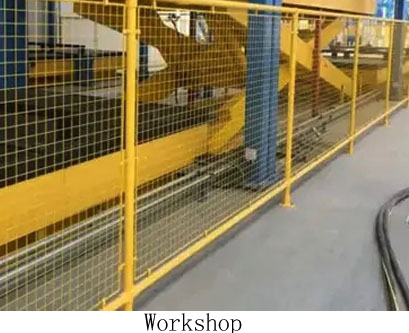

Galvanized welded wire mesh is made from high-quality low-carbon steel wire, precisely welded and treated with a professional galvanizing process to provide rust protection. This product features a robust structure and easy installation, and is widely used in various fields such as building wall reinforcement, indoor and outdoor insulation systems, livestock fencing, and industrial isolation. We strictly adhere to international standards in production and can flexibly customize wire diameter, mesh size, dimensions, and packaging methods to meet different project requirements.
(1) Electro Galvanized Welded Wire Mesh — most common
It is a versatile and economical wire mesh product manufactured by welding low carbon steel wires into a uniform grid pattern and then applying an electro-galvanized zinc coating. The galvanizing process creates a smooth and bright surface while providing effective protection against rust and corrosion.

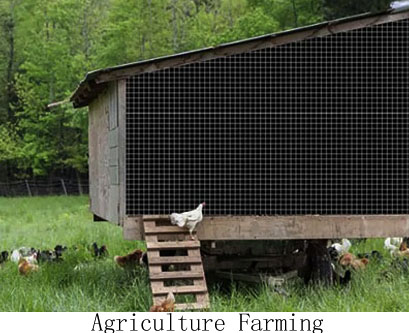

Widely used in agriculture, construction, industrial safety, animal enclosures, and DIY projects, electro galvanized welded wire mesh offers excellent dimensional accuracy, consistent mesh openings, and reliable strength at a competitive price.
Easy Installation
The mesh surface is flat, easy to cut and fix.
Economical and Practical
Overall cost savings of over 15%, and installation efficiency is increased by approximately 40% compared to traditional methods.
(2) Hot Dipped Galvanized Welded Wire Mesh — for very good rust prevention
It provides long-lasting corrosion resistance and structural stability for outdoor and industrial applications. Specifications can be customized to meet wholesale and project requirements.
Key Features
- Thick zinc coating for superior corrosion resistance

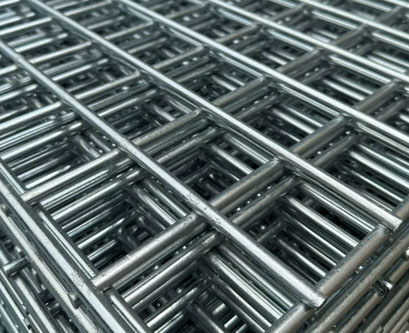

- Strong weld points and uniform mesh openings
- Suitable for outdoor, humid, and harsh environments
Product Advantages
- Corrosion Resistance — Hot-dip galvanized mesh with stood 480 hours of salt spray testing without rusting.
- High Strength — Weld point tensile strength ≥500 N/mm²
Technical Specifications
| Parameter | Details |
|---|---|
| Material | Low Carbon Steel Wire |
| Wire Range | 0.3mm – 6mm |
| Mesh Opening | 6mm – 100mm |
| Width | 0.6m – 2.8m |
| Length | 5m – 50m |

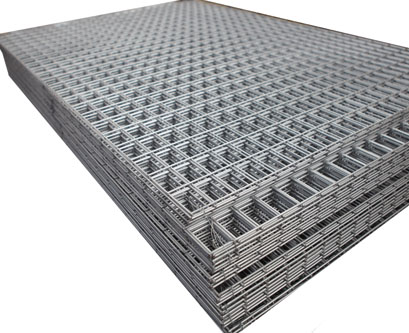

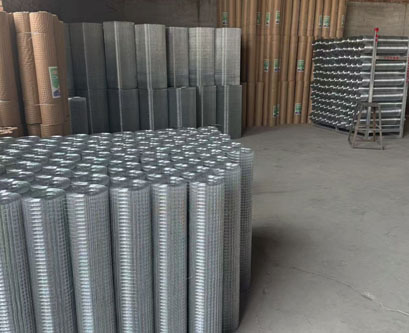

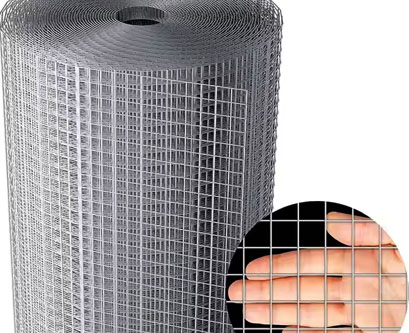

| Form | Rolls or panels |
| Surface Finish | Zinc Coating: Customized according to application requirements |
| Surface Color | Silver |
| Packing & Delivery | Plastic Film or pallet |
Process Features
Both of the following processes can provide test reports conforming to different international standards such as ASTM, BS, and ISO, according to customer requirements:
| Process type | Principle | Zinc coating structure/characteristics | Key indicators |
|---|---|---|---|
| Electro galvanizing | Electrolytic deposition | Pure zinc layer, physically bonded, with a smooth and uniform surface. | Zinc coating weight: 8–12 g/㎡ Salt spray test: 48–96 hours |
| Hot-dip galvanizing | High-temperature immersion | Zinc-iron alloy layer, metallurgically bonded, thick coating. | Zinc coating weight: 30–60 g/㎡ Salt spray test: ≥300 hours |
Feature Comparison
| Feature | Electro Galvanized | Hot Dipped Galvanized |
|---|---|---|
| Zinc Coating | 8–20 g/m² | 40–300 g/m² |
| Corrosion Resistance | Medium | High |
| Surface Finish | Bright | Slightly Rough |
| Price | Lower | Higher |
| Indoor Use | Excellent | Excellent |
| Outdoor Use | Moderate | Excellent |
